Engineering an Automated Finishing Platform for On-Demand Photo Production
Client Need & Project Overview
To support the evolution of on-demand retail photo production, Hewlett Packard sought to create a behind-the-counter photo finishing solution capable of delivering high-throughput photo printing with minimal operator intervention.
The system would need to combine a high-speed inkjet photo printer with a custom finishing accessory capable of cutting, sorting, and stacking photos in multiple output sizes. The goal was to create a compact retail-ready platform that could process customer photo orders quickly and reliably within the space constraints of retail environments.
HP engaged NOVO Engineering to develop the high-speed finishing system that would transform raw printed sheets into finished photo products. The project required sophisticated media handling, precision motion control, asynchronous workflow coordination, and compact system integration — challenges that closely resemble many of the automation and material-handling demands seen in modern digital manufacturing and high-speed fulfillment systems today.
NOVO was responsible for the architecture, engineering design, system integration, prototyping, and transfer to manufacturing for the complete finishing solution.
Key Engineering Challenges & Solutions
| Challenge | NOVO’s Solution |
|---|---|
| Handling freshly printed photos without damaging the surface | Developed a felt-covered, multi-path belt transport system that minimized contact with the still-drying print surface while maintaining high throughput. |
| Managing asynchronous printer output | Engineered a buffer-loop staging system capable of accommodating bursts of three photos every eight seconds while maintaining downstream processing efficiency. |
| Supporting two-axis photo cutting operations | Designed an XY cutting system capable of accurately slitting and cross-cutting multiple sheet sizes into a wide range of final output dimensions. |
| Achieving throughput faster than the printer itself | Optimized the cutter and sorter-stacker systems to operate at speeds exceeding printer throughput in order to maximize total system productivity. |
| Maintaining media-handling reliability with loose sheets of varying sizes | Developed robust transport, sorting, and stacking mechanisms capable of handling variable media dimensions with high reliability. |
| Meeting strict retail footprint requirements | Created a compact mechanical design that wrapped around the existing printer architecture while preserving serviceability and ergonomics. |
Technical Innovations & System Design
Non-Contact Media Transport & Workflow Buffering
One of the project’s most difficult engineering challenges involved transporting freshly printed photos immediately after printing without damaging the still-drying surface. Conventional roller-nip transport systems were not viable because direct contact could mar image quality.
NOVO engineered a felt-covered, multi-path belt transport system that enabled gentle media handling while maintaining the aggressive throughput requirements of the printer. The transport architecture also incorporated a buffer-loop staging system that provided sufficient drying time before the sheets entered the cutting process.
This type of coordinated asynchronous workflow management anticipated many of the same automation principles now common in high-speed digital manufacturing systems, where intelligent buffering and synchronized downstream operations are essential for maintaining throughput and reliability.
Precision XY Cutting System
While single-axis cutting systems are common in web handling applications, this project required accurate two-axis cutting operations across multiple media sizes and output formats.
NOVO developed an XY cutter capable of mapping three different input sheet sizes into the most common retail photo dimensions. Accurate media positioning and support during both slitting and cross-cutting operations required careful coordination of transport mechanics, motion control, and cutter design.
To ensure cut quality and durability, NOVO identified and partnered with a blade manufacturer possessing extensive expertise in precision cutting systems. Fixed and rotating cutter blades were selected to achieve clean cuts while maintaining acceptable service life under demanding production conditions.
Compact System Integration & Usability
Retail deployment imposed strict footprint constraints, requiring the finishing system to integrate tightly around the existing printer architecture without compromising accessibility or operator usability.
NOVO developed a compact wraparound design that minimized floor space requirements while still allowing convenient access for consumable replacement, maintenance, and jam clearing. Operator ergonomics, safety, and ease of use were incorporated throughout the system design process to support efficient retail operation.
NOVO also coordinated closely with HP and multiple subcontractors throughout development, helping manage integration challenges across mechanical systems, fabrication, and manufacturing transfer.
Results & Impact
- Reliable handling of freshly printed photo media without surface damage
- Automated multi-size cutting using coordinated XY cutting operations
- Sorter-stacker throughput exceeding printer output rates
- Compact retail-friendly system integration
- High-reliability media handling across varying photo dimensions
- Rapid development timeline from architecture through manufacturing transfer

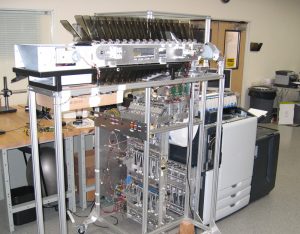

Following two rapid design iterations and a demonstration phase, NOVO completed the final transfer to manufacturing. The entire project — from system architecture through production transfer — was completed in approximately nine months.
Why NOVO Engineering?
Today’s automated production systems increasingly depend on intelligent material handling, asynchronous workflow coordination, precision motion systems, and compact high-throughput automation. Although this project was developed years before many of these concepts became mainstream across digital manufacturing and fulfillment environments, it incorporated many of the same foundational engineering principles that drive modern automated production systems today.
This project highlights NOVO’s ability to solve complex multidisciplinary engineering problems involving motion systems, media handling, industrial automation, manufacturability, and user-centered equipment design.
By combining system-level thinking with rapid execution, NOVO helped HP bring an innovative retail production platform to market under aggressive technical and timeline constraints.
